Garage Door Weather Seal Bead Type – Gray

$21.99$169.99

Garage Door Round Bead Seal

Garage Door Weather Stripping

Taylor Garage Door Weather Seal

Clear
SKU: GRAY BEAD SEAL Category:

Description

Garage Door Weather Seal Bead Type – Gray


Garage door weather stripping – Round bead style, gray.
Heavy duty high quality astragal vinyl.

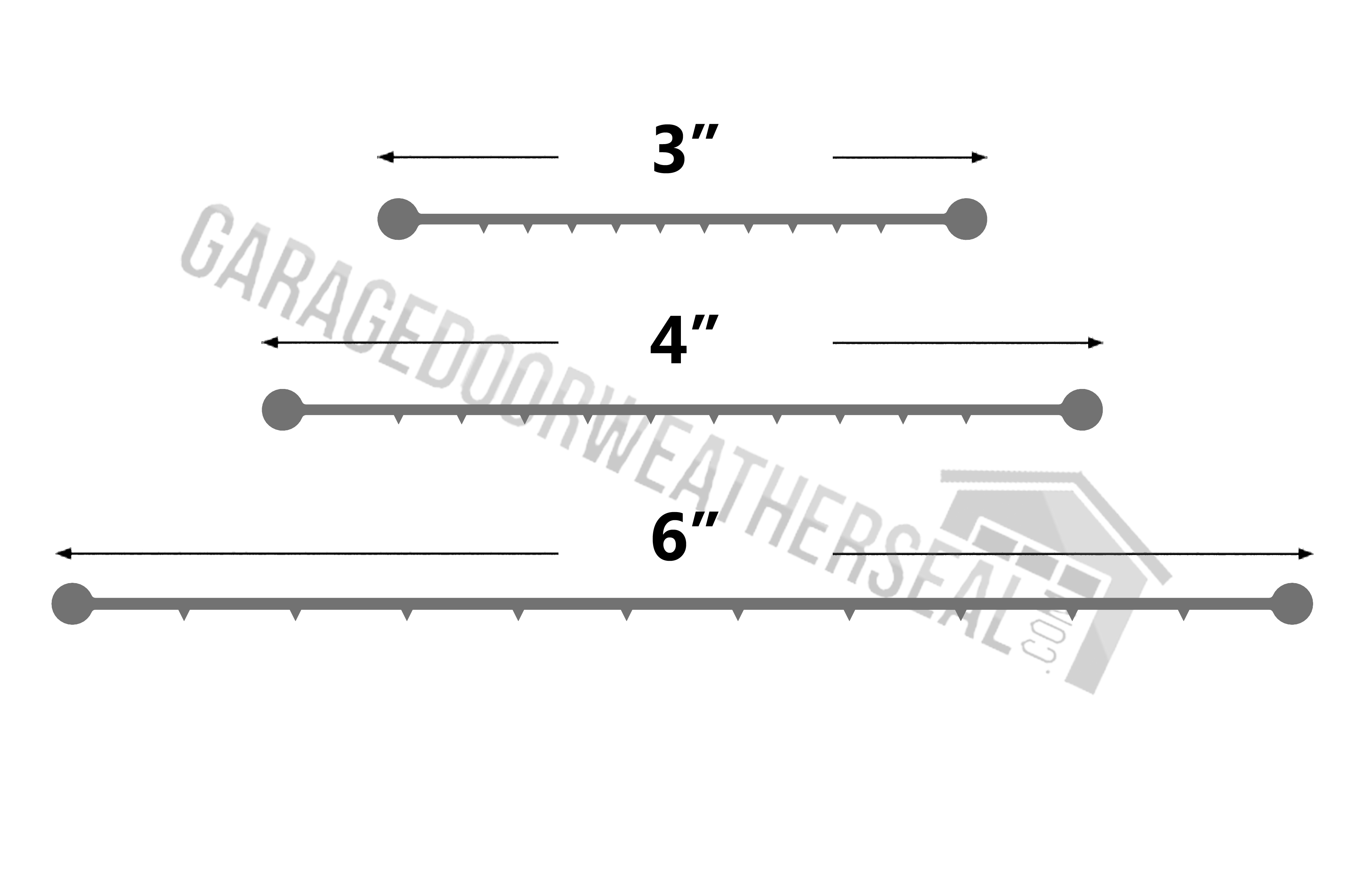

Choose from 3″, 4″ or 6″ wide.
Round bead ends measure 3/16″ – Gray



Made in the USA



Also available in Black PVC. Black also available in 3″, 4″ & 6″ wide.

Black is available here – GARAGE DOOR WEATHER SEAL BEAD TYPE



This Bead Style Weather Seal is common to Taylor and other brand Garage Doors.

Ribbed on the outside to help prevent freezing to the floor.
Designed to slide into a round channel on the bottom of the door.



The beads are perfectly round, do not confuse with the similar Wayne Dalton style that is not completely round.

Wayne Dalton seal available here – WAYNE DALTON GARAGE DOOR WEATHER SEAL



Remove and cut off a small piece of the existing weather seal and measure both the bead width and the width of the seal overall.

Check out our bead seal overview video for help in determining the correct bead seal for YOUR door.

All lengths are at least 2″ longer than the length stated for a custom fit to your door.



We also stock the smaller bead seal common to Finishline Doors.

Finishline weather seal available here – GARAGE DOOR SMALL BEAD SEAL





Easy to install

-Remove old weather seal, clean and straighten the bottom retainer if needed.
-Check the ends of the retainer, they may have been pinched when originally installed, open those ends up if needed.

For round bead tracks a Phillips screw driver will work to open the channels on the ends.
-Spray lubricant into the channels of the retainer. One person guides the seal into the tracks, one person pulls the weather seal.
-Do not stretch the weather seal tight, move it along the bottom of the door until it is not being stressed or stretched, cut off any excess and lightly crimp the ends of the channel to hold the garage door bottom weather stripping in place.



If you have a situation that requires a wider seal, or if there is a gap issue that will not be corrected with this bead weather seal, consider replacing the bottom retainer to a more standard 1/4″ T style.
That will allow you to use a wide variety of types and styles of weather seal.
We stock many different bottom retainers and a wide variety of weather seal in the common 1/4″ style.



Very easy to convert to a different bottom retainer and T style weather seal, see our store category – WEATHER SEAL RETAINER, for a wide variety of retainer options.



We also carry complete kits that consist of retainers and weather seal, see out category Weather Seal Kits.

If you have any questions or need help with a bulk order call or email us, we’d be happy to help you.

Check out our bead seal overview video and also our product specific videos.





Garage Door Weather Seal Bead Type – Gray

Additional information

Weight N/A
Dimensions N/A
WIDTH

3" WIDE, 4" WIDE, 6" WIDE

LENGTH

8' LENGTH, 9' LENGTH, 10' LENGTH, 12' LENGTH, 16' LENGTH, 18' LENGTH, 20' LENGTH, 50' LENGTH, 100' LENGTH, 200' LENGTH
