Wayne Dalton Garage Door Weather Seal

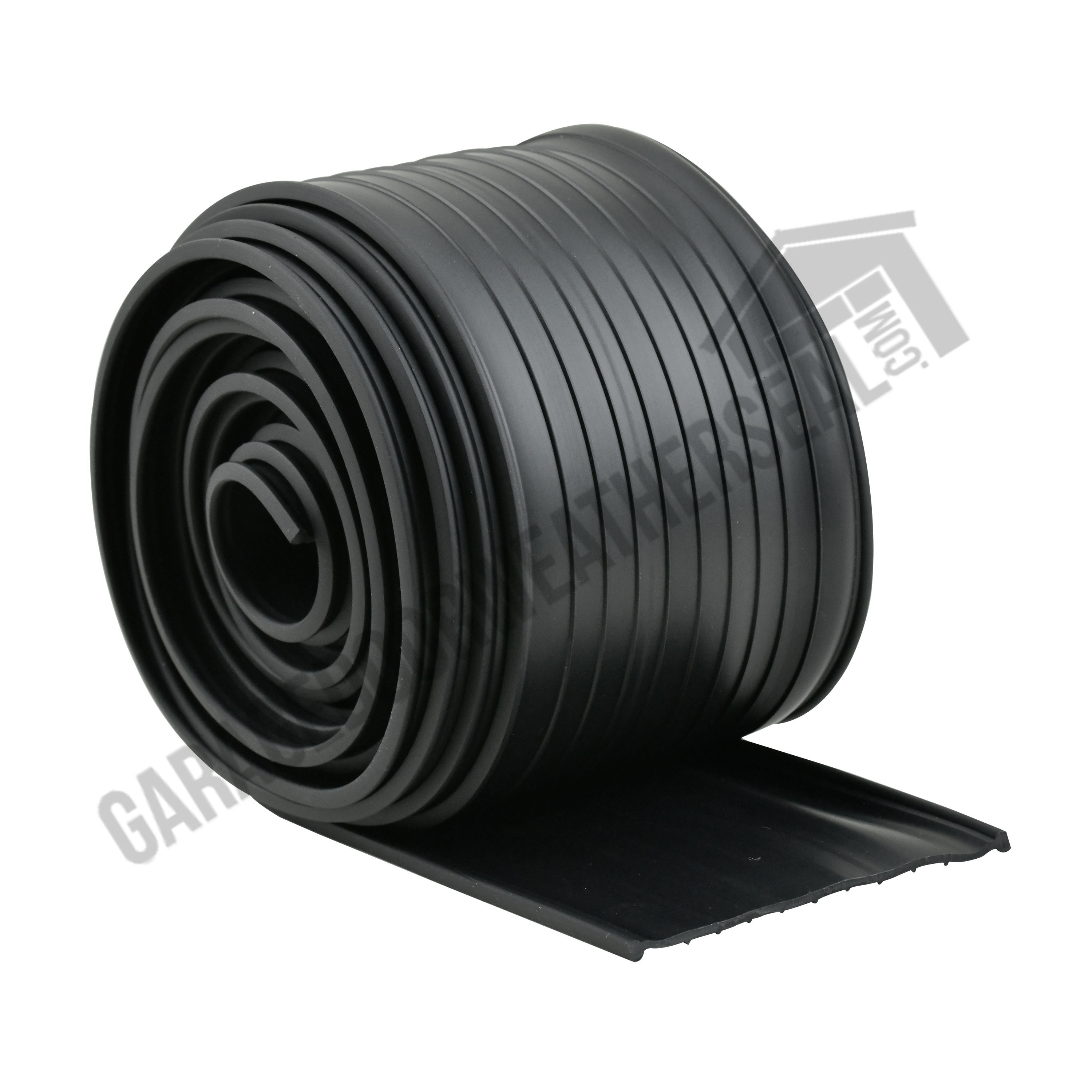

Bottom Weather Seal for Steel WAYNE DALTON Brand Garage Doors
This is genuine Wayne Dalton Weather Seal MADE IN THE USA


Manufactured by Wayne Dalton co, for Wayne Dalton brand garage doors.
This weather seal is for Wayne Dalton doors only.

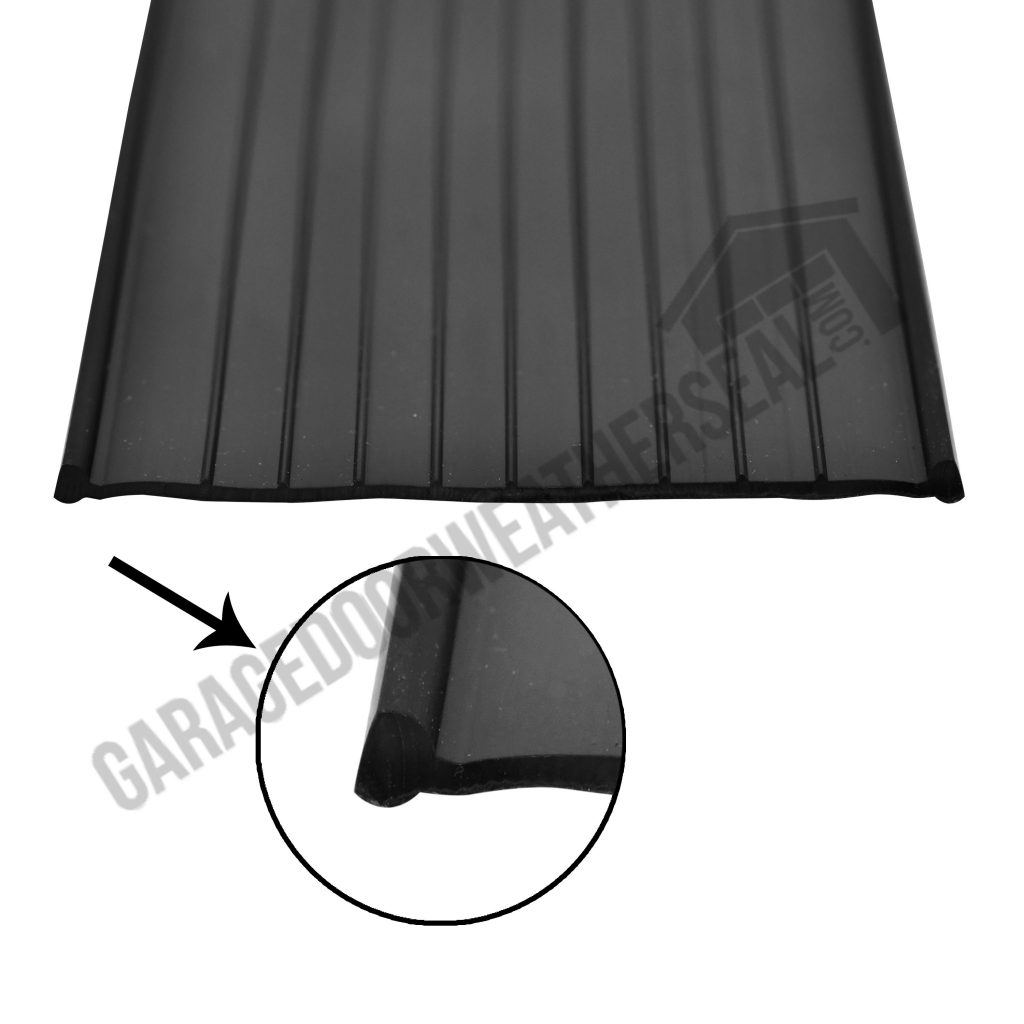

See the photos and our video, this weather seal has unique ends that slide into the bottom retainer of the garage door.


Wayne Dalton seal falls into a category of its own, it is not a true bead seal, nor is it a traditional T style seal.

Wayne Dalton Seal has its own unique design at the point that the weather seal slides into the retainer on the bottom of the garage door.

Described as an oval shaped bead this seal is exclusive to Wayne Dalton brand garage doors.

Do not confuse Wayne Dalton weather seal with Bead or T style weather seal.

This is not the only style of garage door weather seal that Wayne Dalton uses on its garage doors but it is by far their most common type used.


There are two things to look at in order to determine if this is the correct weather seal for your door.
One, pull out and cut off a small length of the existing weather seal, look closely at the ends of the seal that slide into the retainer on the door.
Next, Wayne Dalton usually stamps or puts stickers on the edge of the door.
It is a good idea to look at both of these, the existing seal and the edge of the door.

Compare our photos to the seal you have removed from your garage door. Also, check out our video on this product.



3 – 1/8″ wide over all
Bead is approx .145″
Length is approximately 4” longer than the length listed for the perfect fit to your garage door.


This weather seal is unique to Wayne Dalton Garage Doors.


MADE IN THE USA by Wayne Dalton co.


Wayne Dalton 1″ doors

Wayne Dalton has a series of doors that are 1″ thick, we do have seals for these 1″ doors.

We carry a KIT for the 1″ thick Wayne Dalton doors here – WAYNE DALTON GARAGE DOOR WEATHER SEAL KIT

We also carry an aluminum retainer for the 1″ Wayne Dalton door here – GARAGE DOOR BOTTOM RETAINER 1-1/2 X 1



-Easy to install, remove old weather seal, clean and straighten the bottom retainer if needed.
-Check the ends of the retainer, they may have been pinched when the weather seal was originally installed.
-Spray lubricant into the channels of the retainer.
-One person guides the seal into the tracks, one person pulls the weather seal.
-Do not stretch the weather seal tight, move it along the bottom of the door until it is not being stressed or stretched, cut off any excess.
-Then lightly crimp the ends of the channel to hold the garage door bottom weather stripping in place.




If you have a situation that requires a wider seal, or if there is a gap issue that will not be corrected with this standard weather seal.
Consider replacing the bottom retainer to a more standard 1/4″ T style.
That will allow you to use a wide variety of types and styles of weather seal.
We stock many different bottom retainers and a wide variety of weather seal in the common 1/4″ style.


If you have any questions or need help with a bulk order call or email us, we’d be happy to help you.


We also carry kits that consist of the retainer and weather seal including a kit for the hard to find Wayne Dalton 1″ doors.

See our videos on these and any of our products and please give the video a thumbs up if you like them.
